Godox AD200Pro II TTL Pocket Flash

Description

Godox AD200Pro II TTL Pocket Flash

Key Features

• Includes Speedlite & Bare Bulb Heads
• Wireless Sync with Optional X3 Trigger
• Compatible with Most TTL Systems
• 200Ws, 1/512 to 1/1 Power Output
• Up to 500 Full-Power Flashes
• Flash Duration: 1/272 to 1/23,500 sec
• 0.01-1.8 sec Recycling Time, HSS Support
• Heads with Bi-Colour LED Modeling Light
• Upgraded TFT Screen for Onboard Control
• Includes Battery & Charger

Godox AD200Pro II Overview

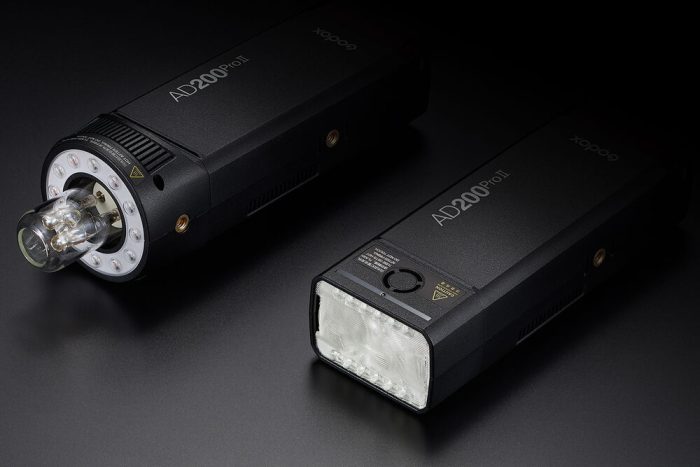

The enhanced AD200Pro II TTL Pocket Flash from Godox is a versatile 200Ws flash with convenient and optimized features. Offering the same flexibility previously found in its predecessor, the AD200Pro II was developed with advanced capabilities to help you create a versatile and effective lighting setup. Just as its previous version, the Pro II includes a standard speedlite head and a bare bulb head to give you the option of two distinctly different qualities of light. Both flash heads are now in their latest improved versions – H200 II and H200J II. Power is variable from 1/512 to full power, while each flash head has a bi-colour LED modeling light. Some other relevant upgrades of the AD200Pro II are uncomplicated wireless sync with an optional X3 trigger and group colour indicator for easy identification.

Your Lighting Companion
The AD200Pro II offers full compatibility with several TTL systems including Canon, Nikon, Sony, FUJIFILM, Olympus, and Panasonic. All of its functions can not only be made manually on the unit but also wirelessly thanks to the Godox wireless X system. Remote operation requires separate purchase of a Godox trigger, such as the recommended X3, and the flash is also compatible with the X2, XPro, and XPro II models. The AD200Pro II body is compact and lightweight enough to become your ideal lighting companion in the studio or on location.

AD200Pro II Upgrades
Keeping some characteristics of its previous version, such as 200Ws and 0.01-0.8 sec recycling time for fast and reliable use, the AD200Pro II provides flash durations from 1/272 to 1/23,500 sec with its speedlite flash head, 1/252 to 1/16,200 sec with its bare bulb head, and a wider output range from 1/1 to 1/512. Settings are accessible via local buttons and displayed on the easy-to-read, upgraded TFT (thin-film-transistor) colour screen for intuitive onboard control.
The AD200Pro II is part of Godox’s 2.4 GHz wireless X system with a range of 100m, featuring 16 groups and 32 channels that facilitate the use of multiple lights. Use the optional X3 trigger or the X2, XPro, and XPro II triggers to wirelessly control the flash head. The brand presents what they call “Group Colour Indicator”, meaning that each of the 16 groups will display a different colour locally on the flash head for easy group identification even from a distance.

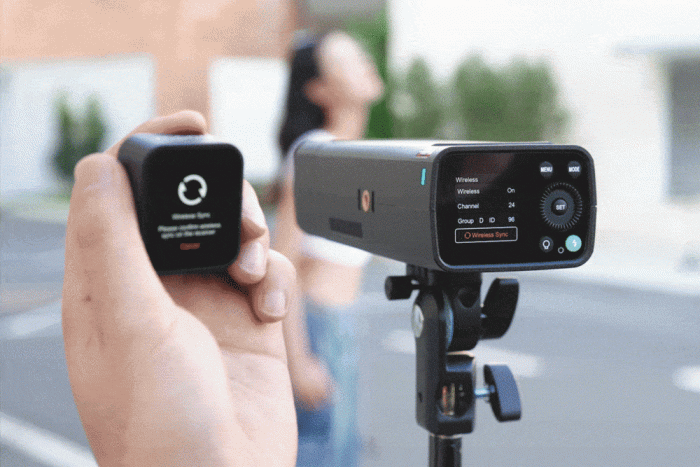

One-Tap Sync Capability
Godox has thought about every aspect to simplify the use of the AD200Pro II when combined with the separately available X3 trigger. Made for instant synchronization with the X3, the AD200Pro II lets you focus on your visual creation. This wireless sync function will optimize your photo workflow, cutting down the time you normally spend managing complicated channels and ID settings. Simply press the wireless sync option on both your X3 and the AD200Pro II to achieve quick synchronization.

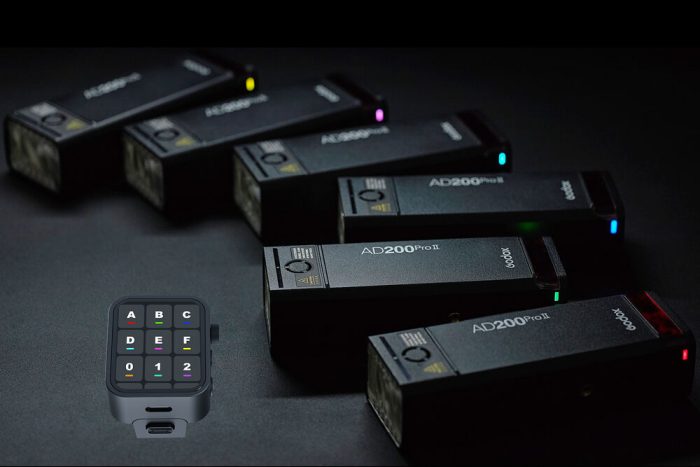

Smooth Workflow with Group Colour Identification
The AD200Pro II is part of Godox’s 2.4 GHz wireless X system with a range of 100m, featuring 16 groups and 32 channels that facilitate the use of multiple lights. Use the optional X3 trigger or the X2, XPro, and XPro II triggers to wirelessly control the flash head. The brand presents what they call “Group Colour Indicator”, meaning that each of the 16 groups will display a different colour locally on the flash head for easy group identification even from a distance.
Versatility

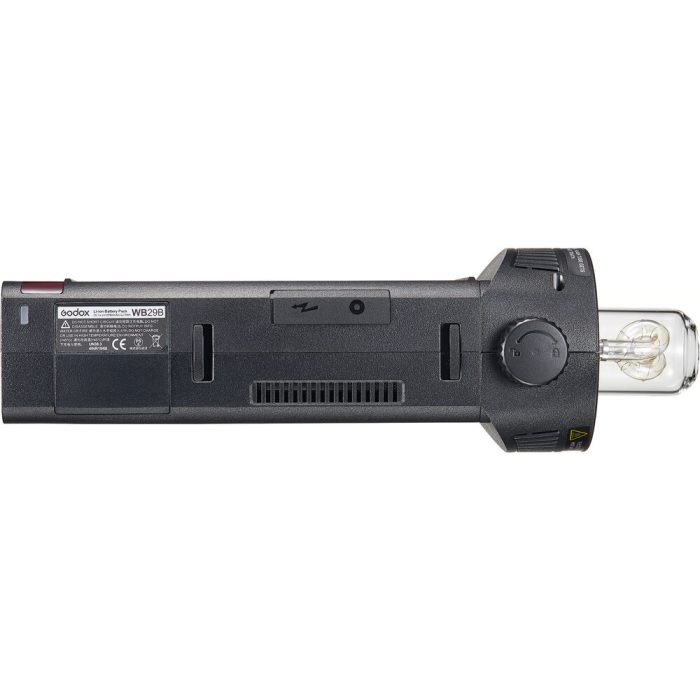

The included flash heads can be easily swapped out for different needs. The speedlite head outputs the standard look of an on-camera flash, while the bare bulb head produces a softer light. Users can also take advantage of the Godox separately available H200R round and R200 ring flash heads to vary the AD200Pro II’s quality of light depending on the environment and desired look. The possibilities do not end here the AD200Pro II is also compatible with an optional ADS200 stick flash head that enables a wide 360° beam spread.
Godox Wireless X System
The built-in 2.4 GHz wireless X system, features 16 groups and 32 channels that facilitate the use of multiple lights. 99 wireless ID settings (01-99) limit interference from other in range systems. Additionally, the AD200Pro II has a 3.5mm sync port for a wired connection.
500 Full-Power Flashes
The AD200Pro II maintains a stable output, providing 10 steps of extended output power with adjustability from 1/512 to full power 1/1 in 0.1 stop increments. The flash runs on a removable and rechargeable 14.4V/2900mAh lithium battery that gives you up to 500 full power flashes and thousands of lower power flashes. Godox conveniently includes the charger in the box. Besides that, the AD200Pro II can work with an optional Godox Propac PB960 power pack.
Stable Colour Temperature Mode
A dedicated stable colour temperature mode improves colour consistency to within +/- 100K throughout the entire power range.

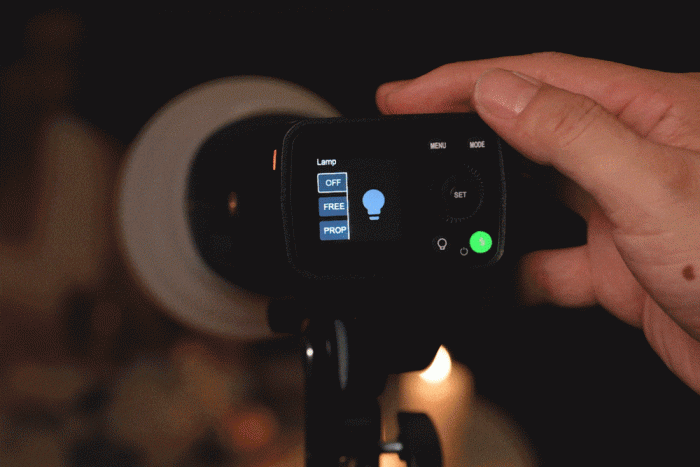

Adjustable Bi-Colour LED Modeling Light
At 5800K, the AD200Pro II is well-suited for portraits, weddings, and other types of photography. Both of the included flash heads come with a bi-colour LED modeling lamp adjustable from 2800 to 6000K. These LED modeling lights output 1400 lux at 1m and can be set to proportional to mimic the effects of the flash’s power setting for pre-visualizing your final shot or they can be adjusted from 10 to 100% power. The H200J II provides up to 5.5 hours of continuous modeling light, while the H200 II offers up to 6 hours.
Easy Mounting
The AD200Pro II ships with a bracket that has a 5/8″ receiver to mount separately available stands. The unit features 1/4″-20 threads conveniently placed in different parts of its body.
Pocket-Size Portability
At just 907g, users can create a kit with two or more AD200Pro II units without it being a burden to carry. Measuring only 21.01 x 7.8 x 5.21 cm when combined with its speedlite head and 26 x 9 x 7.9cm with its bare bulb head.

Other Specs & Benefits
• Supports TTL, M, and Multi modes
• Guide number of 52m at ISO 100 (speedlite flash head)
• Guide number of 60m at ISO 100 (bare bulb flash head)
• S1 and S2 modes
• High-speed sync enables shutter speeds up to 1/8000 sec
• First curtain and second curtain sync modes
• Stroboscopic flash up to 90 times
• Flash exposure compensation
• Fan cooled for improved heat dissipation
• Replaceable flash tube
• Quick charging port
• Allows for firmware updates
• Optional barndoors, softbox, and other modifiers and accessories are available to personalize your work
• Not compatible with the Godox AD-B2 dual power flash bracket

What’s in the Box:

• Godox AD200Pro II TTL Pocket Flash
• Flash Body
• H200 II Speedlite Flash Head
• H200J II Bare Bulb Flash Head
• Flash Tube
• Battery
• Charger
• PD Adapter
• USB Cable
• AD-E2 Holder
• Battery Protection Cover
• Carry Bag
• Limited 2-Year Godox SA Warranty

Godox AD200Pro II Specs

Light Fixture
Item Type 1x Monolight
Includes Flash Tube Yes
Included Storage Case Yes
Power Range 200 Ws

Power Control 10-Stop Range
Guide Number 52 m, ISO 100
Recycle Time 0.01 to 1.8 Sec
Colour Temperature 5800K +/- 200K
Flash Ready Indicator Audio & Visual
TTL Metering Yes, via Non-Included Transmitter (Canon E-TTL / E-TTL II, FUJIFILM TTL, Nikon i-TTL, Sony ADI / P-TTL)
Cooling System Fan
Umbrella Mount No
Front Accessory Mount Proprietary
Replaceable Flash Tube Yes (User Replaceable)
Modeling Light
Modeling Light LED Built-In (2800 to 6000K)
Control Modes Free Set, Off, Proportional
On/Off Switch Yes
Connectivity
Wireless 2.4 GHz Radio/RF
*Built-In
Wireless Remote Control Type Radio/RF Receiver Built-In
Optical Receiver Built-In
Mobile App Compatible No
Wireless Channels 32
Wireless Groups 16
Wireless Frequency 2.4 GHz
Wireless Range 100 m (Radio/RF)
Flash Duration 1/23,500 to 1/272 Sec
Sync Speed 1/8000 Sec (High-Speed)
Delay Range 0.01 to 30 Sec
Power & I/O
Power Source Battery (Included)
Inputs/Outputs 1x 1/8″ / 3.5 mm Flash Sync Input
1x USB-C Battery/Firmware Input
Battery 1x Rechargeable Lithium, 14.4 VDC, 2900 mAh (Included)
• 500 Flashes at Maximum Brightness
Battery Charging 1x Single-Bay Charger (Included)
Input Power 14.4 VDC
Auto Dump No
Mounting
Fixture Mounting Support Mount
2x 1/4″-20 Female Thread
Included Adapter 1x Swivel Mount: 1/4″-20 Male Screw to 5/8″ Receiver
General
Operating Conditions Up to 120°F / 49°C
Dimensions 21.01 x 7.8 x 5.21 cm
Weight 907 g
