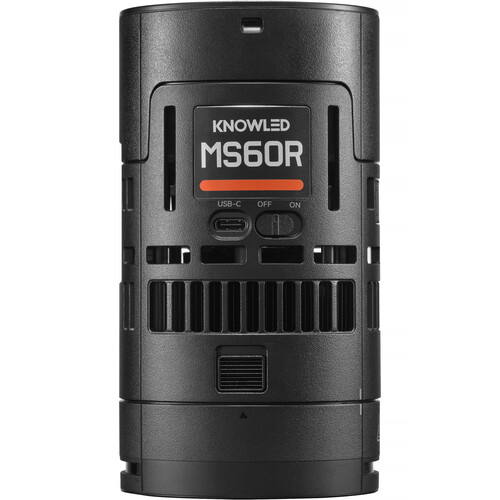

Godox Knowled MS60R RGB LED Light (4-Light Kit)
Key Features
• For Live Events, Broadcast, and Video
• Output: 11,000 Lux at 1m (5600K)
• 1800-10,000K CCT; Full RGB Colour Control
• Battery Power Supply
• DMX, Bluetooth, and App Control
• CRI 95 | TLCI 95
• Fan Cooled
• Includes- Reflector, Mount, and Zoom Lens
• 14 Special Lighting Effects
Godox MS60R Overview
The MS60R kit from Godox includes four lights plus an array of essential tools to power and modify the MS60R. The tiny and modular body of the 60W fixture can be easily adapted to suit your varying lighting needs. One of the top features is the full RGB capability, which allows for boundless creativity options. The back of the light accepts multiple adapters for powering the unit, while the front allows quick attachment of a collection of impressive magnetic light shapers allowing the light to be modified and shaped in various ways, there are also many mounting options available, we recommend you watch the Operation Tutorial Video for a full appreciation of all the options available to you. This kit includes four light bodies combined with two DL5 Lite beam boosters, two collapsible diffusion domes, a wide range of magnetic modifiers, two softboxes, and power adapters and cables for battery or AC power. Two carry cases are supplied to facilitate storage and transportation.
For Multiple Scenarios – Highly compact and versatile. The MS60R can be effortlessly used to illuminate film sets, interviews, broadcast setups, and all types of video creation. Thanks to its size and adaptability to different environments, this light can even be hung in unexpected places such as music stages or everyday spots like restaurants or cafes. The applications of this LED are boundless.

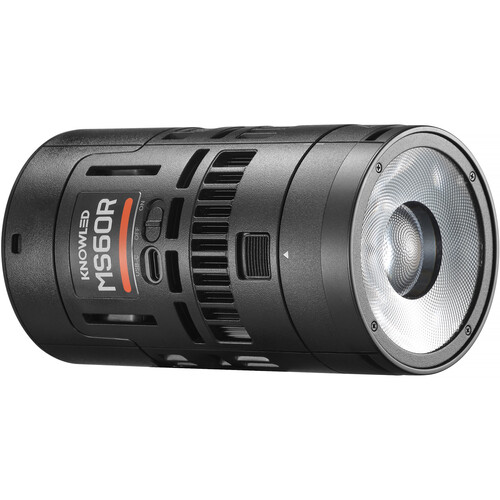

Fully Adjustable RGB Lighting – Even though its body is compact, the MS60R’s lens reflector can expand its output to 11,000 lux at a distance of 1m in 5600K. This bright LED gives you total control of colour with CCT, RGBW, HSI, GEL, XY, and FX modes. Both CCT and brightness settings are adjustable from a wide 1800 to 10,000K and 0 to 100%, respectively. Linear, S-curve, exponential, and logarithmic dimming curves are also accessible. No less relevant, the light also delivers accurate colour performance with CRI and TLCI ratings of 95.
A Variety of Creative Lighting Effects – Besides full RGB for a myriad of custom colours, the MS60R comes with 14 lighting effects to meet your creative vision. Choose from flash, lightning, cloudy, broken bulb, TV, candle, fire, fireworks, explosion, welding, cop car, SOS, RGB cycle, and party presets. Enhance the dynamism of your scenes by adding these lighting effects and achieve visuals that can otherwise be tricky to recreate.

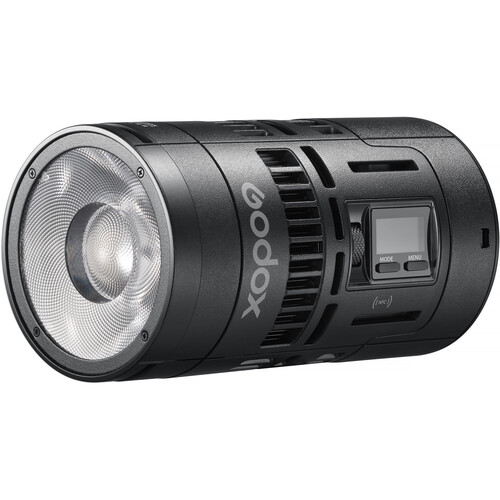

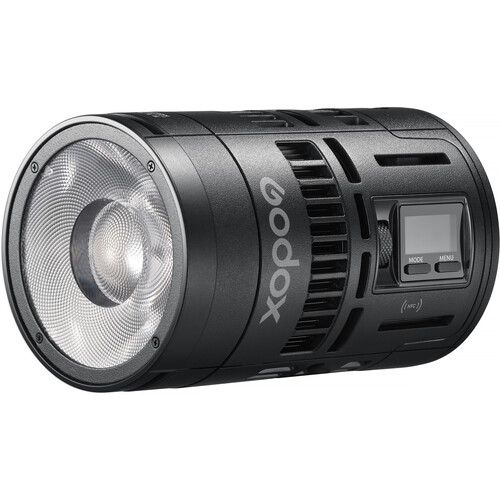

Easy & Advanced Control – A convenient side screen is available for monitoring the parameters of the light, complemented by local controls for easy tweaks. In addition, Bluetooth connectivity via the Godox Light app lets you take full advantage of the MS60R’s host of lighting features from up to 60m away. Not limited to onboard and app control, the fixture also supports DMX512, RDM, and LumenRadio CRMX for more advanced users. The MS60R is also compatible with the Godox KNOWLED app.
NFC Connection- NFC functionality makes connecting the light with the Godox Light app easy. Simply bring your smartphone closer to the NFC spot on the side of the fixture, and the app will connect automatically.

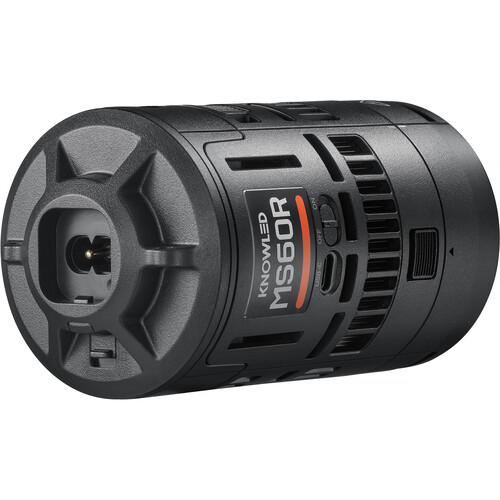

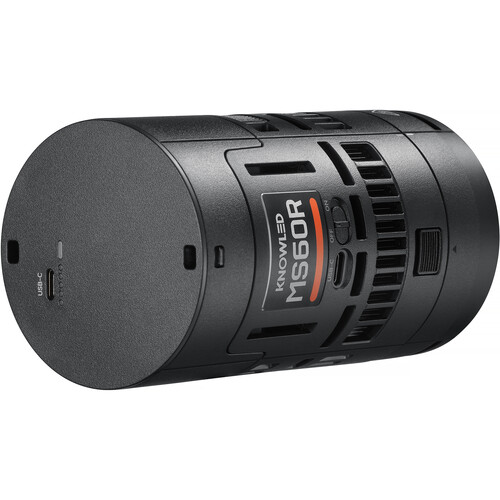

Multiple Power Options- Although the MS60R comes with eight rechargeable batteries and four USB-C charging cables, it can also run from an optional AC power or NP-F battery, this requires the separately available MS60NPA NP-F adapter. If needed, the same NP-F adapter also allows for a connection to an optional V-mount battery. For AC power, use the four included MS60PA01 adapters, which can be combined with the E27 adapters to turn your MS60R units into LED bulb-style fixtures.
Fan Cooled -The integrated fan draws heat away from the MS60R for safe operation. The fan can be turned off for sound-sensitive situations or you may choose from auto, medium, and high fan modes.

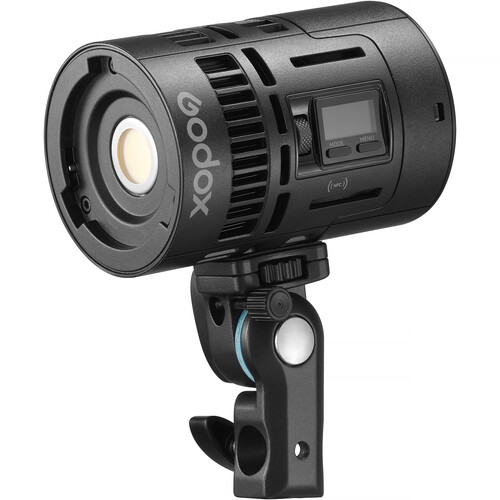

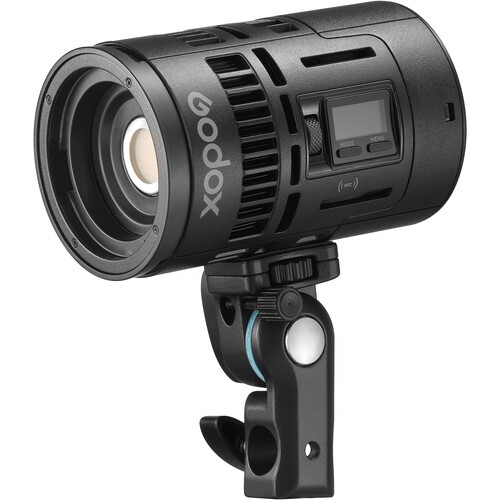

Accessories & Mounting- The MS60R accepts an array of included modifiers, most magnetic. Godox offers other types of optional reflectors and a wide range of dedicated accessories. Modify the fixture with the included zoom lenses or with softboxes in parabolic and rectangular shapes. This kit also includes DL5 Lite beam boosters and collapsible diffusion domes to expand your possibilities. Other optional accessories include a projection attachment with various lens options. A 1/4″-20 thread allows for easy connection to the included stand brackets for extra flexibility.
Extremely Portable- Each fixture alone is 311 g making it super lightweight. Carrying the four LED lights won’t weigh you down—the kit ships with two carry bags to add to its portability.

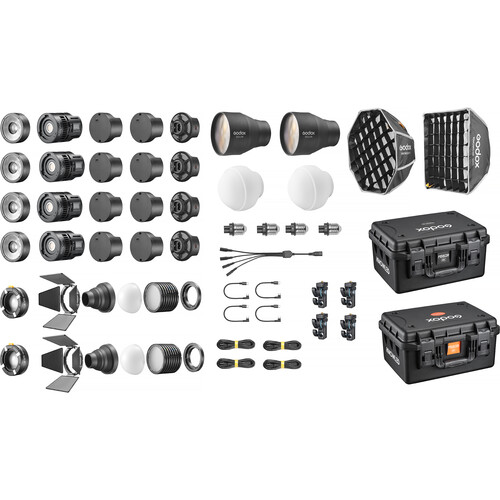

What’s In the Box:
• Godox Knowled MS60R RGB LED Light (4-Light Kit)
• 4 x Light Body
• 4 x Lens Reflector
• 2 x Godox Zoom Lens for MS60Bi & MS60R
• 2 x Godox DL5 Lite Parallel Beam Booster for MS60Bi & MS60R
• 2 x Collapsible Diffusion Dome
• 2 x Godox Magnetic Kit for MS60Bi & MS60R
• Godox Parabolic Softbox for MS60Bi & MS60R (30cm)
• Godox Rectangular Softbox for MS60Bi & MS60R (30.5 x 30.5cm)
• 4 x Godox Power Adapter for MS60Bi & MS60R
• 4 x Power Cord
• 1-to-4 Power Cord
• 8 x Godox Battery for MS60Bi & MS60R
• 4 x USB-C Charging Cord (20cm)
• 4 x E27 Mount Adapter
• 4 x Godox AD-E2 Bracket for AD100Pro, AD200Pro & AD300Pro
• 2 x Carry Case
• Limited 2-Year Godox SA Warranty
Godox MS60R Specs
Light Fixture
Item Type 4x COB LED Special Design Light
Included Light Modifier 6x Lens
2x Softbox
2x Barndoors
4x Dome
2x Snoot
Included Filters Diffusion
Included Storage Case Yes
Photometrics
1800K:
86 fc / 926 Lux at 1 m (Unmodified)
21 fc / 229 Lux at 2 m (Unmodified)
9 fc / 103 Lux at 3 m (Unmodified)
2800K:
131 fc / 1420 Lux at 1 m (Unmodified)
33 fc / 358 Lux at 2 m (Unmodified)
14 fc / 161 Lux at 3 m (Unmodified)
3200K:
131 fc / 1420 Lux at 1 m (Unmodified)
33 fc / 358 Lux at 2 m (Unmodified)
14 fc / 161 Lux at 3 m (Unmodified)
4300K:
129 fc / 1390 Lux at 1 m (Unmodified)
32 fc / 352 Lux at 2 m (Unmodified)
14 fc / 158 Lux at 3 cm (Unmodified)
5600K:
125 fc / 1350 Lux at 1 m (Unmodified)
31 fc / 340 Lux at 2 m (Unmodified)
14 fc / 153 Lux at 3 m (Unmodified)
6500K:
122 fc / 1320 Lux at 1 m (Unmodified)
31 fc / 343 Lux at 2 m (Unmodified)
13 fc / 149 Lux at 3 m (Unmodified)
8500K:
115 fc / 1240 Lux at 1 m (Unmodified)
28 fc / 312 Lux at 2 m (Unmodified)
13 fc / 141 Lux at 3 m (Unmodified)
10000K:
112 fc / 1210 Lux at 1 m (Unmodified)
28 fc / 304 Lux at 2 m (Unmodified)
12 fc / 137 Lux at 3 m (Unmodified)
1800K:
700 fc / 7540 Lux at 1 m (with Lens)
157 fc / 1700 Lux at 2 m (with Lens)
68 fc / 733 Lux at 3 m (with Lens)
2800K:
1059 fc / 11,400 Lux at 1 m (with Lens)
254 fc / 2740 Lux at 2 m (with Lens)
112 fc / 1210 Lux at 3 m (with Lens)
3200K:
1059 fc / 11,400 Lux at 1 m (with Lens)
254 fc / 2740 Lux at 2 m (with Lens)
113 fc / 1220 Lux at 3 m (with Lens)
4300K:
1049 fc / 11,300 Lux at 1 m (with Lens)
252 fc / 2720 Lux at 2 m (with Lens)
111 fc / 1200 Lux at 3 m (with Lens)
5600K:
1021 fc / 11,000 Lux at 1 m (with Lens)
246 fc / 2650 Lux at 2 m (with Lens)
109 fc / 1180 Lux at 3 m (with Lens)
6500K:
1003 fc / 10,800 Lux at 1 m (with Lens)
241 fc / 2600 Lux at 2 m (with Lens)
107 fc / 1160 Lux at 3 m (with Lens)
8500K:
947 fc / 10,200 Lux at 1 m (with Lens)
228 fc / 2460 Lux at 2 m (with Lens)
101 fc / 1090 Lux at 3 m (with Lens)
10000K:
929 fc / 10,000 Lux at 1 m (with Lens)
223 fc / 2410 Lux at 2 m (with Lens)
99 fc / 1070 Lux at 3 m (with Lens)
Colour Temperature 1800 to 10,000K
Colour Modes RGB, Daylight, Tungsten
Colour Accuracy Standard CRI 95, TLCI 95
Dimming Built-In Dimmer
• 0 to 100%
Cooling System Fan
Built-In Flash No
Preprogrammed Effects Yes
Umbrella Mount No
Front Accessory Mount Proprietary
Connectivity Wireless Remote Control Type
Bluetooth Wireless CRMX
Mobile App Compatible Yes: Android & iOS
App Name: Godox Light
Functionality: Remote Control
Wireless Range 60 m (Bluetooth)
Power & I/O
Power Source Battery (Included)
AC to DC Adapter (Included)
Screw-In Socket (Adapter Included)
USB Power (Cable Included)
Inputs/Outputs 1x USB-C Female Power/DMX Input
*Adapter Required (Not Included)
Battery Plate Type 1x Sony L-Series / NP-F (Not Included)
Battery Per Light: 1x Proprietary Rechargeable Lithium, 14.4 VDC, 3400 mAh, 48.96 Wh (8x Included)
Battery Charging 4x Charging Cable (Included)
Input Power 20 VDC at 3 A
Included Adapter / Cable 4x USB-C to Unspecified Cable (7.9″ / 20 cm)
Power Consumption 60 W
Mounting
Fixture Mounting 1x 1/4″-20 Female Thread
Included Adapter 4x Swivel Mount: 5/8″ Receiver to 1/4″-20 Male Screw
General
Display Yes
Environmental Resistance No
Operating Conditions -4 to 104°F / -20 to 40°C
Dimensions 9.09 x 7.7 x 7.6 cm (Fixture without Lens)
Weight 311 g (Fixture without Battery/Lens)
