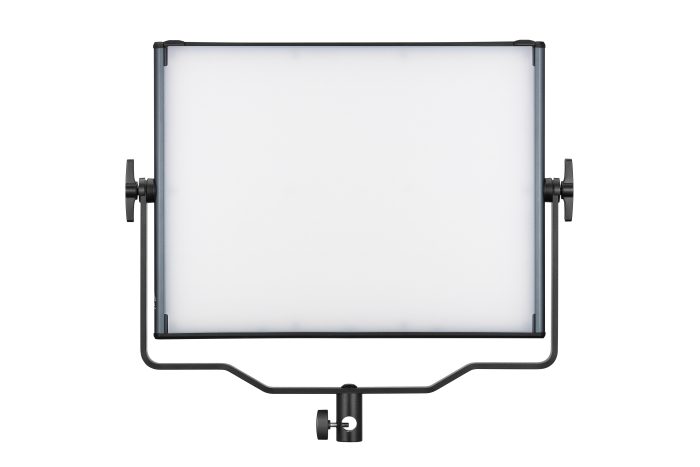

Godox LDX100Bi Bi-Colour LED Light Panel
Key Features
• For Video Production and Vlogging
• Output: 4900 Lux at 3.3′ (5600K)
• 2800-6500K CCT
• 18 x 16″; AC/DC Operation
• CRI 96 | TLCI 96
• Onboard, Wireless & App Control
• 0-100% Dimming, 11 Lighting Effects

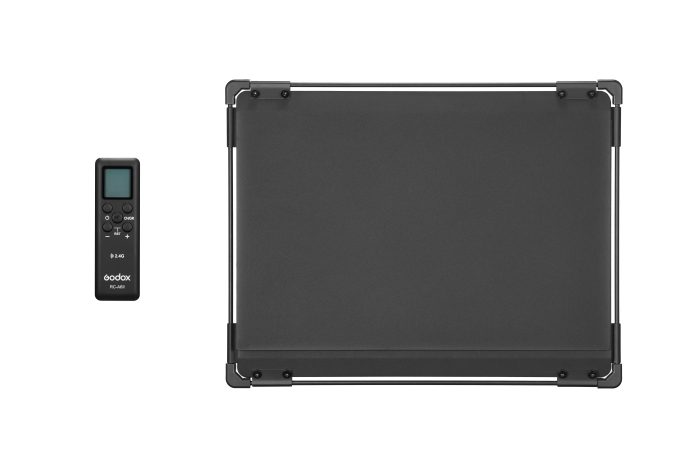

• Optional Remote Control & Barndoors
• Includes Diffuser
• Includes Power Supply & Carry Case
Godox LDX100Bi Overview
The LDX100Bi Bi-Colour LED Light Panel from Godox is a compact 47 x 42cm. fixture with bi-colour capability allowing you to quickly adjust the colour temperature from 2800 to 6500K. This light can be dimmed from 0 to 100% throughout its CCT range, giving you high CRI/TLCI ratings of 96 as indicators of advanced accuracy in colour rendering. Furthermore, this panel provides a soft light well suited for video use with 11 special effects to lend realism to your shoot. Adjustments can be made either onboard, remotely via an optional wireless remote control, or on the app directly from your smartphone.
The LDX100Bi is rated for output up to 4900 lux at 1m and 5600K, drawing a maximum of 120W of power. For powering the panel, an AC adapter is included for connecting to a wall socket. Additionally, those looking to take the light outdoors can run it on a separately available V-mount battery. Included is a carry bag for storage and transportation.
Bright, Soft Light Source
Designed to illuminate your creative vision, the LDX100Bi can be used with both tungsten and daylight sources. For enhanced versatility, you can easily switch between CCT and FX modes. By short-pressing the built-in analogue dials of the unit, quickly select and customize the intensity or lighting effect.
11 Customizable Lighting Effects
Flash, lightning, cloudy, broken bulb, TV, candle, fire, fireworks, explosion, welding, and SOS. These 11 customizable creative lighting effects will help you achieve different looks.
Greater Control
• The Godox Light app from your mobile device controls the light via Bluetooth from up to 30m away.
• Optional RC-A6II remote controls the light via 2.4 GHz from up to 50m away.
Construction Details
• Integrated screen for viewing settings.
• Built-in V-mount plate.

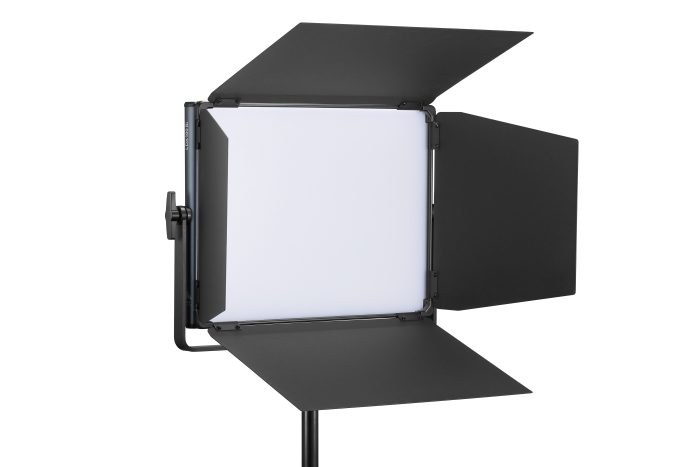

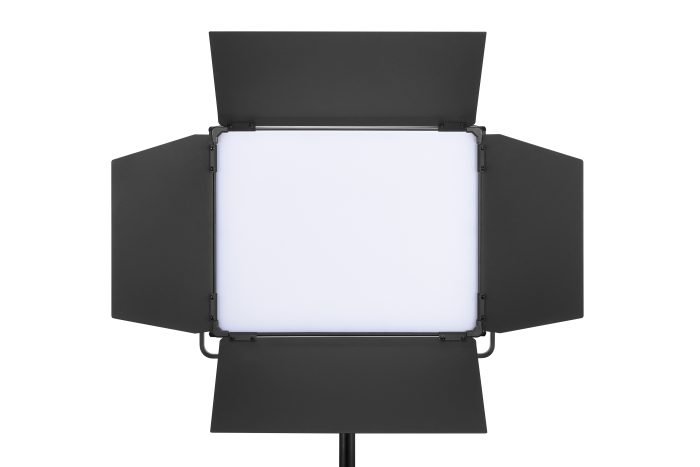

• Detachable diffuser and optional barndoors produce a soft and controllable quality of light.

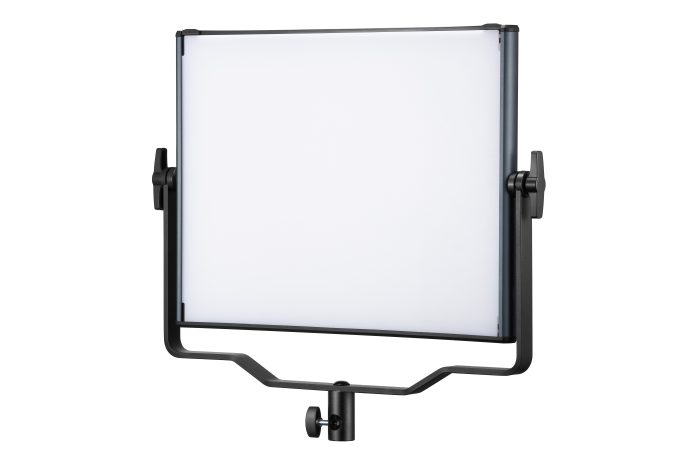

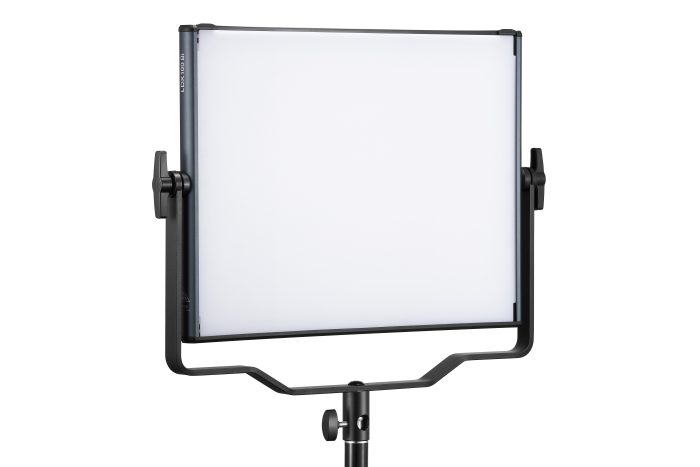

• 360° U-type yoke for flexibility.
• Metal housing.

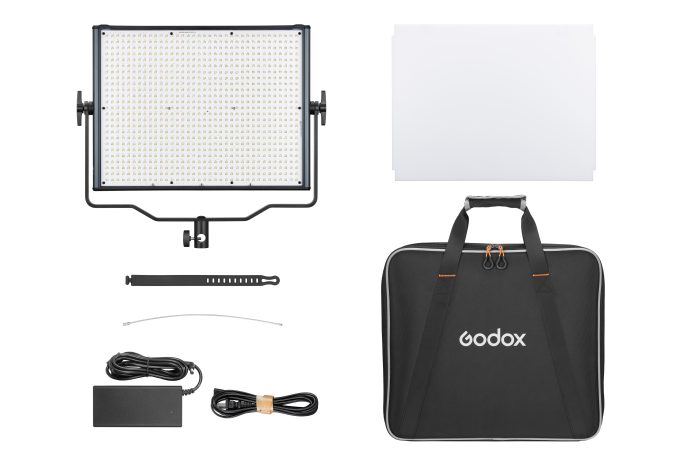

What’s In the Box:
• Godox LDX100Bi Bi-Colour LED Light Panel
• Diffuser
• Adapter Fixing Band
• Steel Rope
• Power Cable
• Power Adapter
• Carry Bag
• Limited 2-Year Godox SA Warranty
Godox LDX100Bi Specs
Light Fixture
Item Type 1 x LED Light Panel
Included Filters Diffusion
Included Storage Case 1 x Case
Photometrics 3200K: 400 fc / 4310 Lux at 1 m*
102 fc / 1100 Lux at 2 m
48 fc / 523 Lux at 3 m
4300K: 433 fc / 4670 Lux at 1 m*
110 fc / 1190 Lux at 2 m
52 fc / 564 Lux at 3 m
5600K: 455 fc / 4900 Lux at 1 m*
116 fc / 1250 Lux at 2 m
55 fc / 594 Lux at 3 m
6500K: 421 fc / 4540 Lux at 1 m*
107 fc / 1160 Lux at 2 m
51 fc / 551 Lux at 3 m *Standardized Measurement Supplied by the Manufacturer
Colour Temperature 2800 to 6500K
Colour Modes Daylight, Tungsten
Colour Accuracy Standard CRI 96
TLCI 96
Cooling System None
Dimming Yes, Built-In Dimmer 0 to 100%
Umbrella Mount No
Front Accessory Mount None
Connectivity
Wireless Remote Control Type Bluetooth
Radio/RF *Remote Not Included
Mobile App Compatible Yes: Android & iOS App Name: Godox Light *As of May, 2023: Check with manufacturer for the most up-to-date compatibility
Wireless Channels 32
Wireless Groups 16
Wireless Frequency 2.4 GHz
Wireless Range 30 m (Bluetooth)
50 m (Radio/RF)
Power & I/O
Power Source AC to DC Adapter (Included)
Battery (Not Included)
Battery Plate Type 1 x V-Mount (Built-In)
Battery 1 x V-Mount Rechargeable (Not Included)
DC Input Power 20 VDC
Power Consumption 120 W
Mounting
Yoke Type Manually-Operated Yoke
Fixture Mounting Not Specified by Manufacturer
Environmental
Environmental Protection None
General
Display Yes
Materials Metal
Dimensions 46.8 x 41.7 x 6.3 cm
Weight 3.26 kg
