Godox LDX50Bi Bi-Colour LED Light Panel
Key Features
• For Video Production and Vlogging
• Output: 2430 Lux at 1m (5600K)
• 2800-6500K CCT
• 35.7 x 30.5 x 7.5 cm; AC/DC Operation
• CRI 96 | TLCI 96
• Onboard, Wireless & App Control
• 0-100% Dimming, 11 Lighting Effects
• Optional Remote Control & Barndoors
• Includes Diffuser
• Includes Power Supply & Carry Case
Godox LDX50Bi Overview
The LDX50Bi Bi-Colour LED Light Panel is a compact 37 x 30cm fixture with bi-colour capability which enables you to quickly adjust the colour temperature from 2800 to 6500K. This light can be dimmed from 0 to 100% throughout its CCT range, giving you high CRI/TLCI ratings of 96 as indicating advanced accuracy in colour rendering. This panel furthermore provides a soft light which is well suited for video use plus 11 special effects to lend realism to any shoot. Adjustments are made either onboard, remotely through an optional wireless remote control, or via an app directly from your smartphone.
The LDX50Bi is rated for output up to 2430 lux at 1m and 5600K, drawing a maximum of 65W of power. An AC adapter is included for connecting to a wall socket for powering the panel. Additionally, of you are shooting outdoors you can run it on two optional NP-F batteries or the separately available V-mount battery connected by an optional D-Tap cable. The carry bag is included for storage and transportation.
Bright, Soft Light Source
Designed to illuminate your creative vision, the LDX50Bi can be used with both tungsten and daylight sources. You can easily switch between CCT and FX modes for enhanced versatility. By short-pressing the built-in analogue dials of the unit, quickly select and customize the intensity or lighting effect.
11 Customizable Lighting Effects
Flash, lightning, cloudy, broken bulb, TV, candle, fire, fireworks, explosion, welding, and SOS. These 11 customizable creative lighting effects will help you achieve different looks.
Greater Control
• The Godox Light app from your mobile device controls the light via Bluetooth from up to 30m away
• Optional RC-A6II remote controls the light via 2.4 GHz from up to 30m away
Construction Details
• Integrated screen for viewing settings

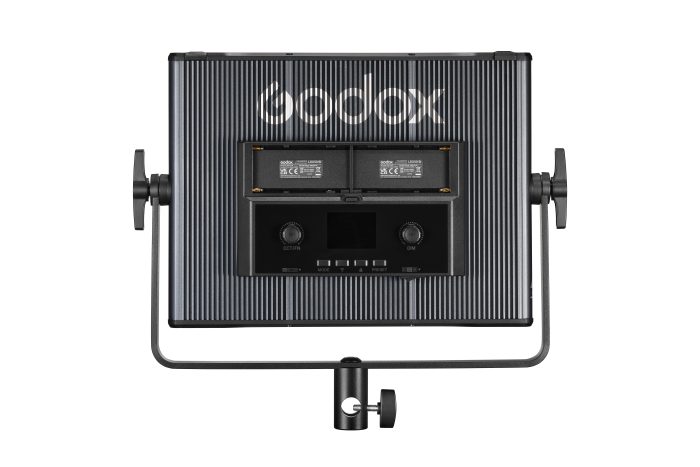

• Built-in dual NP-F plate

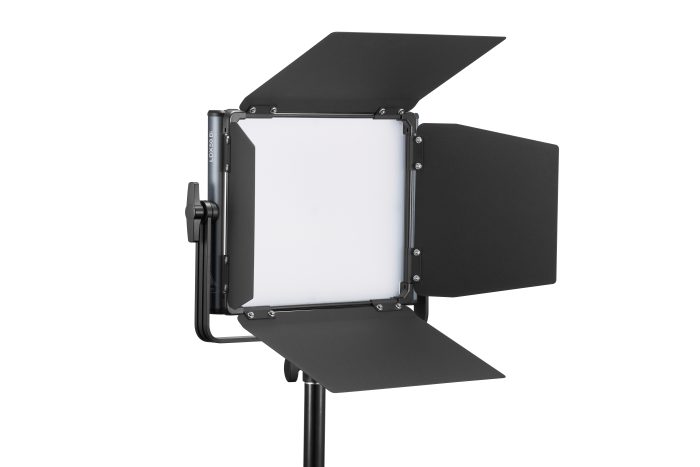

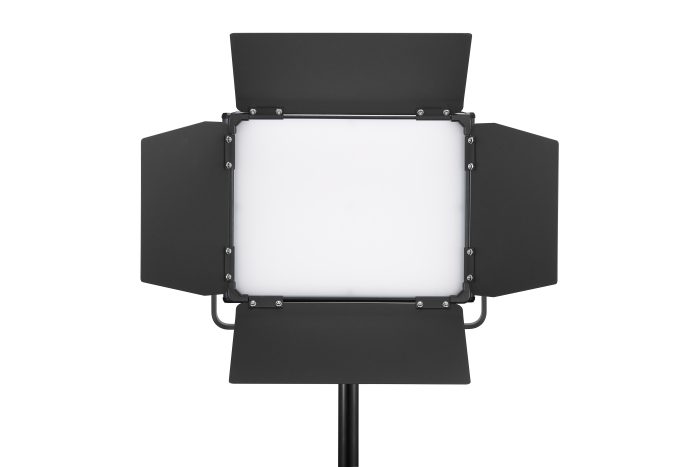

• Detachable diffuser and optional barndoors produce a soft and controllable quality of light

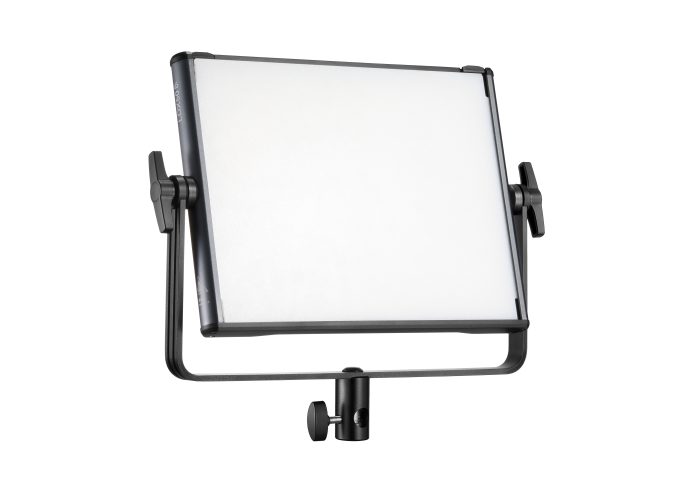

• 360° U-type yoke for flexibility
• Metal housing

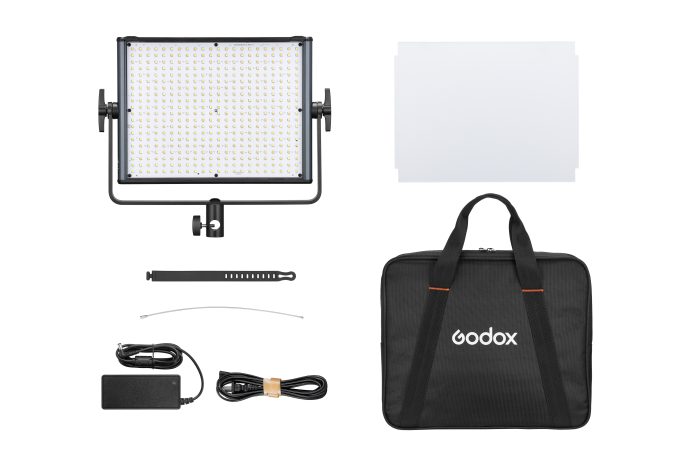

What’s In the Box
• Godox LDX50Bi Bi-Colour LED Light Panel
• Diffuser
• Adapter Fixing Band
• Steel Rope
• Power Cable
• Power Adapter
• Carry Bag
• Limited 2-Year Godox SA Warranty
Godox LDX50R Specs
Light Fixture
Photometrics 3200K: 210 fc / 2270 Lux at 1 m*
776 fc / 8360 Lux at 0.5 m
55 fc / 600 Lux at 2 m
4300K: 229 fc / 2470 Lux at 1 m*
849 fc / 9140 Lux at 0.5 m
60 fc / 656 Lux at 2 m
5600K: 225 fc / 2430 Lux at 1 m*
837 fc / 9010 Lux at 0.5 m
59 fc / 645 Lux at 2 m
6500K: 220 fc / 2370 Lux at 1 m*
810 fc / 8720 Lux at 0.5 m
58 fc / 625 Lux at2 m *Standardized Measurement Supplied by the Manufacturer
Colour Temperature 2800 to 6500K
Colour Modes Daylight, Tungsten
Colour Accuracy Standard CRI 96 TLCI 96
Cooling System None
Dimming Yes, Built-In Dimmer 0 to 100%
Umbrella Mount No
Front Accessory Mount None
Connectivity
Wireless Remote Control Type Bluetooth Radio/RF *Remote Not Included
Mobile App Compatible Yes: Android & iOS
App Name: Godox Light *As of May, 2023: Check with manufacturer for the most up-to-date
compatibility
Wireless Channels 32
Wireless Groups 16
Wireless Frequency 2.4 GHz
Wireless Range 30 m (Bluetooth) 50 m (Radio/RF)
Power & I/O
Power Source AC to DC Adapter (Included)
Battery (Not Included)
Battery Plate Type 2 x Sony L-Series / NP-F (Built-In)
Battery 2 x Sony-Type L-Series / NP-F Rechargeable (Not Included)
or
1 x V-Mount Rechargeable (Not Included)
DC Input Power 20 VDC
Power Consumption 65 W
Mounting
Yoke Type Manually-Operated Yoke
Fixture Mounting Not Specified by Manufacturer
Environmental
Environmental Protection None
General
Display Yes
Materials Metal
Dimensions 35.7 x 30.5 x 7.5 cm
Weight 1.85 kg
