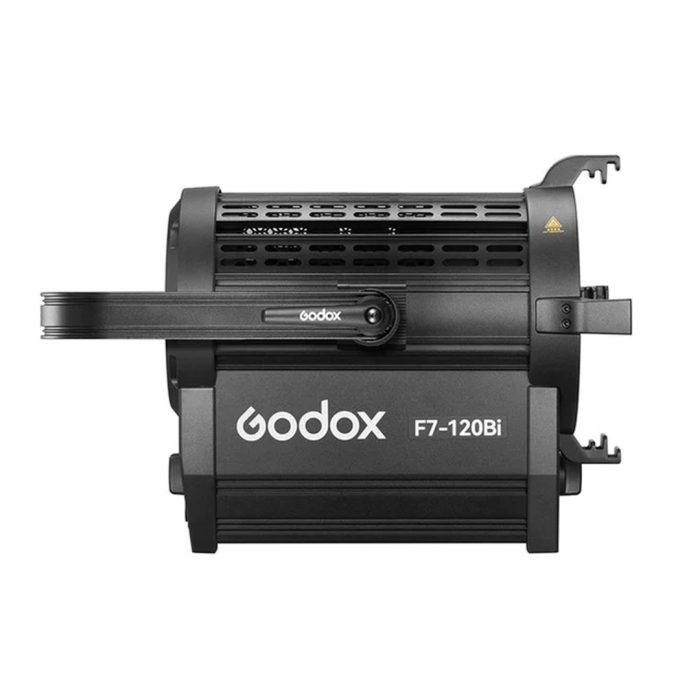

Godox F7-120Bi Bi-Colour LED Fresnel Light (Standard Mount)

Description

Godox F7-120Bi Bi-Colour LED Fresnel Light (Standard Mount)

Key Features

• For Studio & Film/TV Production
• Output: 43,100 Lux at 1m (5600K)
• 3200-5600K CCT
• 15-60° Adjustable Beam Angle
• AC Power
• CRI 96 | TLCI 97
• Onboard, DMX & App Control
• Fanless Design, Standard Yoke
• Includes Four-Way Barndoors
• Includes Power Supply

Godox F7-120BI Overview

Offering an exceptionally high colour rendering index, precise colour temperature, and soft, flicker-free illumination. The F7-120Bi from Godox features a professional focus-adjustment system essential for spotlights, allowing for a beam angle adjustment between 15-60 degrees. Additionally, there is seamless 0-100% dimming, and Bluetooth control/DMX512 control.

This 3200-5600K fixture is a valuable light source for TV sets, theatre, and film productions where it’s standard yoke is highly prized, allowing easy mounting on light stands. Equipped with a 7″ Fresnel lens, the F7-120Bi has a beam angle variable from a 15° spot to a 60° flood and anywhere in between for precise control over how the light falls on your scene. Providing soft, bright, and uniformly flicker-free illumination. Built specifically to be used on sets, the fixture’s fanless design is quiet enough for even the most sound-sensitive environments. With a CRI (Colour Rendering Index) of 96+ and a TLCI (Television Lighting Consistency Index) of 97+, these lights achieve a high colour rendering accuracy. They effectively restore the natural skin tones of individuals and the true colours of objects on the set, meeting the high colour rendering standards required for film, TV studios, and theatres.

Fresnel Lens for Adjustable Beam Spread
The 7″ Fresnel lens is adjustable from a 60° flood to a tight 15° spot via a simple knob. Whether shooting in spot or flood mode, the F7-120Bi provides a high level of output with minimized power loss. This 3200-5600K fixture has a peak intensity of 43,100 lux at 1m (spot beam at 5600K).

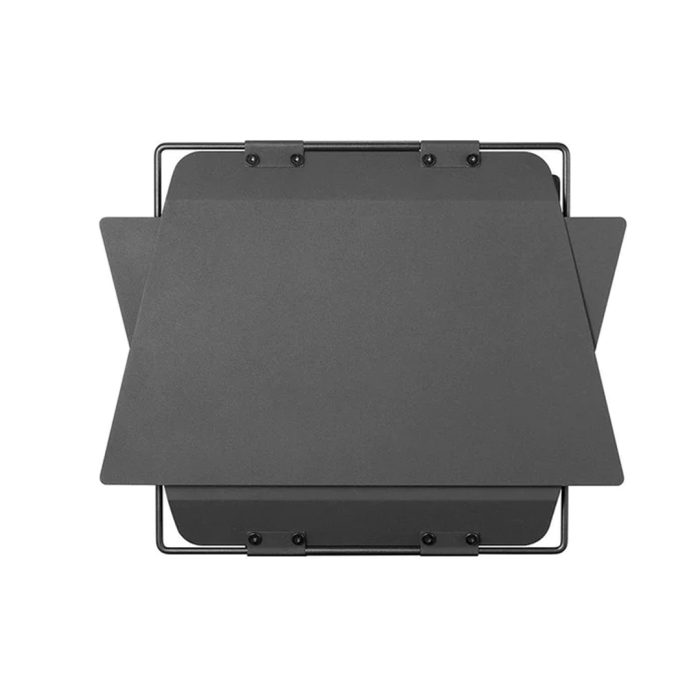

Four-Way Barndoors
The Fresnel’s included and detachable four-leaf barndoors allow you to further modify the beam to selectively light areas of your subject.

Control Methods
The F7-120Bi allows for multiple control methods, giving you the flexibility to adjust and manipulate the light onboard or remotely.
• Onboard control of brightness, beam angle, and DMX addressing.
• DMX control with the ability to fine-tune brightness and channels individually.
• The Godox Light app from your mobile device controls the light via Bluetooth from up to 30m away.
Power Supply
This fixture can be used worldwide with a multi-voltage 100-240 VAC. To simplify your cable management and installation, the F7-120Bi can be powered individually or up to 10 units can be daisy-chained simultaneously.

Fanless, Silent Operation
The light’s metal housing was designed and optimized for an efficient heat dissipation using natural air cooling and providing silent operation. As a further precaution, the fanless design prevents overheating ensures longer shooting time and extends the LED lifespan. LEDs are also known for power efficiency, the F7-120Bi consumes just 120W of power.

What’s In the Box:

• Godox F7-120Bi Bi-Colour LED Fresnel Light (Stand Mount)
• Yoke
• Four-Leaf Barndoors
• Power Cord

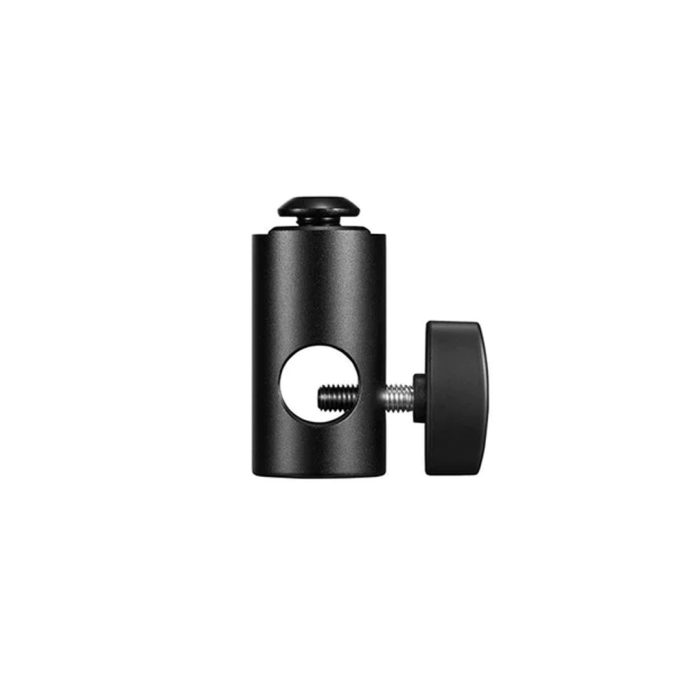

• Mounting Adapter
• Safety Cable
• Limited 2-Year Godox SA Warranty

Godox F7-120BI Specs

Light Fixture
Item Type                                               1x LED Fresnel
Included Light Modifier                     1x Barndoors
Included Storage Case                        No
Photometrics                                        Spot Beam at 3200K:  3316 fc / 35,700 Lux at 1 m*
984 fc / 10,600 Lux at 2 m
473 fc / 5100 Lux at 3 m
174 fc / 1880 Lux at 5 m
Spot Beam at 4300K:
3873 fc / 41,700 Lux at 1 m*
1151 fc / 12,400 Lux at 2 m
552 fc / 5950 Lux at 3 m
205 fc / 2210 Lux at 5 m
Spot Beam at 5600K:
4003 fc / 43,100 Lux at 1 m*
1198 fc / 12,900 Lux at 2 m
570 fc / 6140 Lux at 3 m
211 fc / 2280 Lux at 5 m
Flood Beam at 3200K:
956 fc / 10,300 Lux at 1 m*
255 fc / 2750 Lux at 2 m
118 fc / 1280 Lux at 3 m
43 fc / 468 Lux at 5 m
Flood Beam at 4300K:
1114 fc / 12,000 Lux at 1 m*
299 fc / 3220 Lux at 2 m
139 fc / 1500 Lux at 3 m
50 fc / 548 Lux at 5 m
Flood Beam at 5600K:
1151 fc / 12,400 Lux at 1 m*
308 fc / 3320 Lux at 2 m
143 fc / 1550 Lux at 3 m
52 fc / 563 Lux at 5 m     *Standardized Measurement Supplied by the Manufacturer
Colour Temperature                              3200 to 5600K
Colour Modes                                          Daylight, Tungsten
Colour Accuracy                                      Standard CRI 96  TLCI 97
Dimming                                                  Yes
Cooling System                                       Passive
Beam Angle                                              15 to 60° with Included Lens
Built-In Flash                                          No
Umbrella Mount                                     No
Lens
Lens Type                                                Fresnel
Lens Diameter                                        17.8 cm
Connectivity
Wireless Remote Control Type          Bluetooth
Mobile App Compatible                      Yes: Android & iOS
App Name:                                             Godox Light
Wireless Range                                     30 m (Wi-Fi)
Power & I/O
Power Source                                        AC Power (Cable Included)
AC Input Power                                   100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable                  Yes
Power Consumption                          120 W
Mounting
Yoke Type                                            Manually-Operated Yoke
Fixture Mounting                              Not Specified by Manufacturer
Environmental
Environmental Protection              No
Operating Temperature                  -4 to 122°F / -20 to 50°C
General
Display                                               Yes
Materials                                          Metal
Dimensions                                     50.9 x 38.1 x 32.4 cm
Weight                                              7.63 kg
