Godox VDS-M1 Shotgun Mic

Description

Godox VDS-M1 Shotgun Mic

Godox VDS-M1 Key Features

• For Mobile Video & Indie Film
• AA Battery or Phantom Powered
• Cardioid & Supercardioid Polar Patterns
• Resists RF-Induced Noise
• Sensitive Condenser Capsule
• XLR 3-Pin Output
• XLR to 3.5mm Cable for Cameras
• 1/4″ Adapter for Mixer or Audio Recorder
• Windscreen Reduces Wind Noise
• Lightweight Metal Housing

Godox VDS-M1 Overview

Whether shooting indoors or outside, the Godox VDS-M1 shotgun microphone offers mobile videographers, location sound recordists, and indie filmmakers the flexibility needed to capture clear, quality speech and ambience in a variety of situations. Its sensitive condenser capsule can be switched between cardioid and supercardioid polar patterns to control the directional characteristics for enhanced rear- or side-facing rejection.
The VDS-M1’s alloy-constructed housing provides the benefits of light weight and resistance to RF interference. Connect its XLR 3-pin output to an external mic preamp and run it on phantom power, or use the supplied XLR to 3.5mm cable and 1/4″ adapter to plug the mic into a camera or mixer while powering it via a single AA battery. A foam windscreen is included to help reduce wind noise.
Cardioid Polar Pattern
Cardioid mode allows the mic to pick up the sound source it is pointed at. Its heart-shaped response type enable rich, natural sound while rejecting background noise behind the mic.
Supercardioid Polar Pattern
Supercardioid is a more directional mode that rejects ambient noise from the sides of the microphone to provide focused pickup of the source. It offers increased isolation from extraneous sound and elevated resistance to feedback.

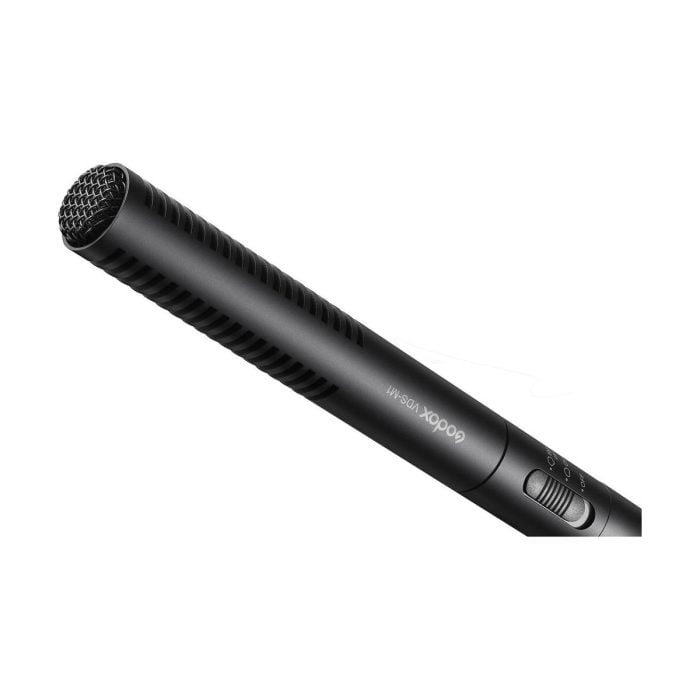

Electrostatic Condenser Head
The VDS-M1’s condenser capsule is highly sensitive, so it can capture low-level sounds while maintaining low self-noise.
Alloy Construction
The durable alloy-constructed VDS-M1 protects inner components and eliminates RF-induced mic noise, thus enhancing overall audio recording quality.
XLR Output

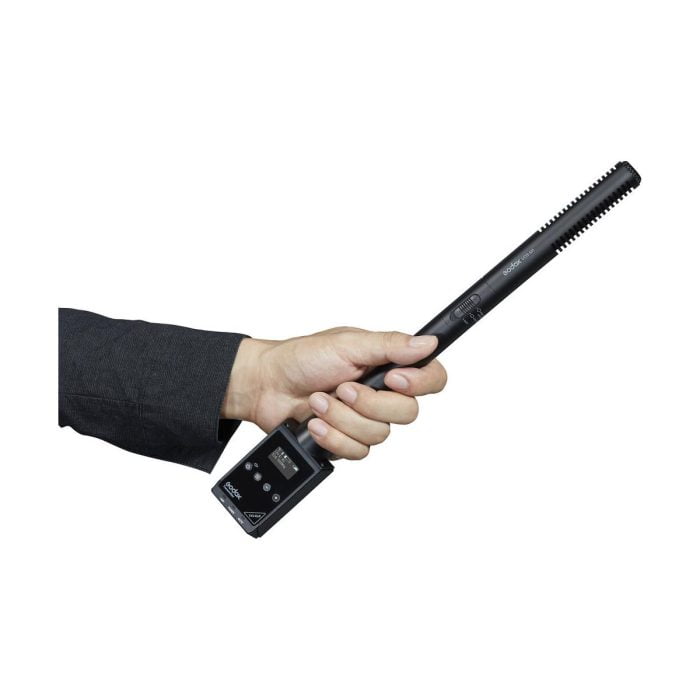

Its balanced XLR 3-pin output connector excels in long-distance signal transmission, allowing the mic to work in wired or wireless configurations.
Wide Compatibility
The VDS-M1 includes an XLR to 3.5mm microphone cable and a 3.5mm to 1/4″ adapter. As a result, it can be used with an array of devices such as cameras, camcorders, computers, portable recorders, mixers, and more.
Two Power Options
Power the mic via phantom power (9 to 52 VDC) or with the supplied AA battery.
Wind Protection
Slip the supplied foam windscreen over the mic to reduce wind noise.

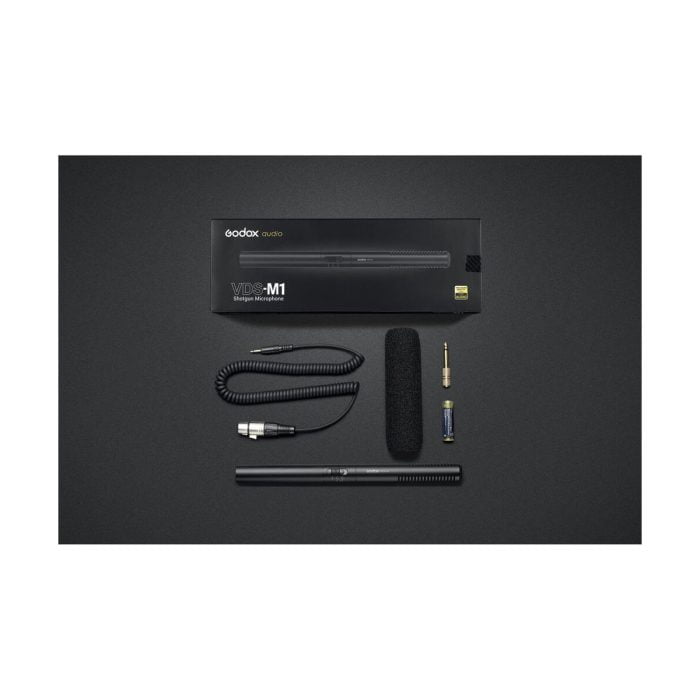

What’s In the Box

• Godox VDS-M1 Multipattern Shotgun Microphone
• Windscreen
• XLR to 3.5mm Mic Cable
• 3.5mm to 1/4″ Adapter
• AA Battery
• Carrying Bag
• Limited 2-Year Godox SA Warranty

Godox VDS-M1 Specs

Microphone
Primary Applications Audio for Video
Form Factor Shotgun Mic / Stand/Boom Mount
Intended Sound Sources Speech/Voice Over, Room Ambiance
Sound Field Mono
Operating Principle Line Gradient
Capsule Electret Condenser
Polar Pattern Cardioid, Supercardioid
Pattern Selection Switched (Adjustable on Mic)
Orientation End Address
Circuitry Solid-State
Pad None
High-Pass Filter None
Tone Adjustment None
Gain Adjustment None
Indicators None
On-Board Controls On/Off, Polar Pattern
Windscreen Foam (Included)
Performance
Frequency Range Cardioid:
50 Hz to 16 kHz
Supercardioid:
80 Hz to 14 kHz
Impedance Cardioid: 500 Ohms ± 30% at 1 kHz
Supercardioid: 1600 Ohms ± 30% at 1 kHz
Load Impedance ≥ 1000 Ohms
Sensitivity Cardioid: -45 dB
Supercardioid: -30 dB
Connectivity
Output Connectors (Analog) 1 x XLR 3-Pin Male (on Mic)
1 x 3.5 mm TS Male (on Detachable Cable)
Headphone Connector None
Power
Bus Power None
Operating Voltage 9 to 52 V (Phantom Power)
Battery Type 1 x AA (Included)
Physical
Colour Black
Mounting Mic Clip/Stand Adapter, Shock mount (with Optional Hardware)
Included Case Soft Case
Included Filters None
Construction Material Metal
Storage Temperature 14 to 122°F / -10 to 50°C
Dimensions ø: 22.2 x L: 280 mm
Weight 267 g
