Godox AD33– K2 Motorized Diffusion Panels
Key Features
• Designed for filmmakers, cinematographers
• Motorized Diffusion, dynamic diffusion adjustments
• Supports DMX, CRMX and Bluetooth App Control
• Patented Frequency-Adjustment Technology
• Powered By V-Mount batteries
• Lightweight Portable Design
• Includes Tool and Cleaning Kits

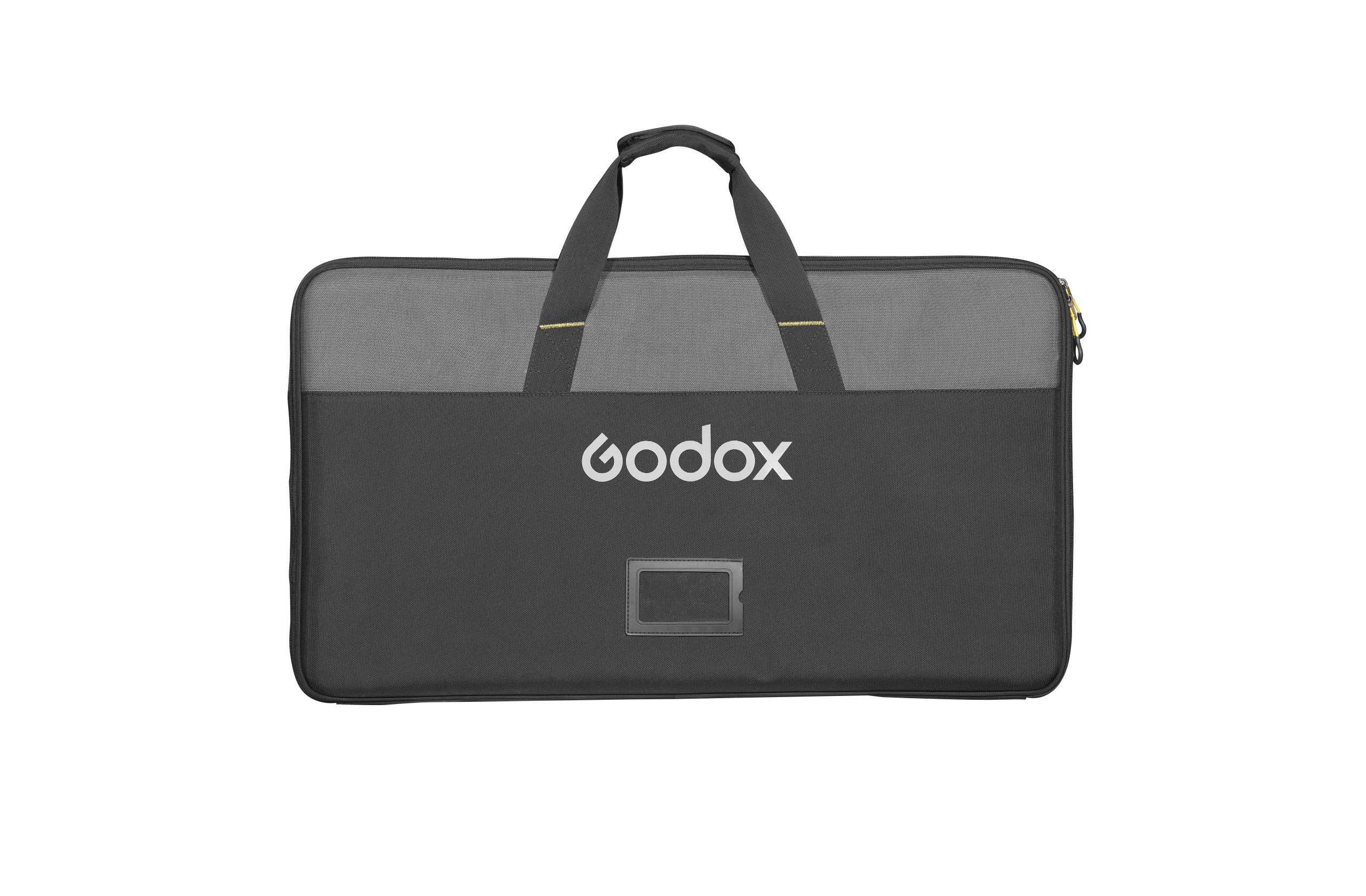

• Includes Soft Carry Case
Godox AD33 Overview

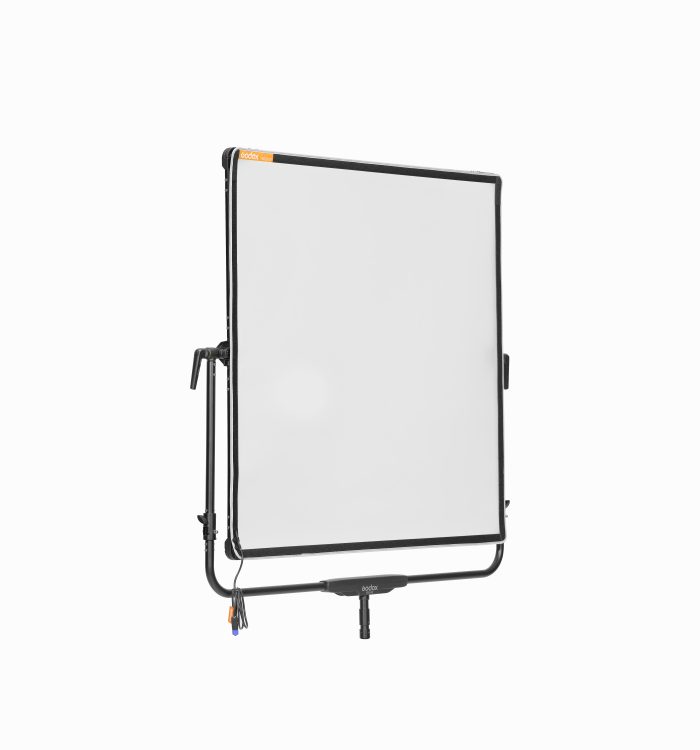

The Godox AD33 Motorized Adjustable Diffusion Panel combines a variety of new technology with versatility making it the ideal tool for cinematographers, Videographers and content creators. Giving you precises control over your lighting at the turn of a dial or via your remote. Instantly adjust your diffusion level—smoothly and quickly shifting from hard shadows to ultra-soft illumination. Precise motorized control enables dynamic diffusion changes exactly when and how you need them, enhancing flexibility on set and expanding creative possibilities.
Dual Modes – The AD33 diffusion Panel supports both ‘Level Mode’ and ‘Light Reduction Mode’. ‘ Level Mode’ enables 0-100% visualized quick adjustments, providing intuitive diffusion control. While ‘Light Reduction Mode’ offers a -0.1 to -2.0 EV range, which is designed to match professional workflows.

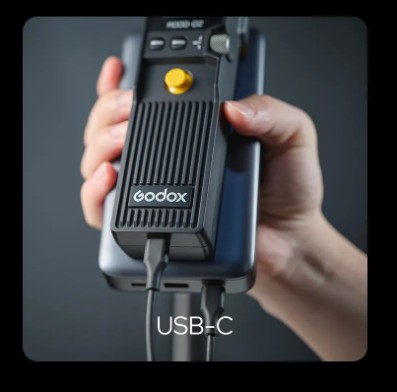

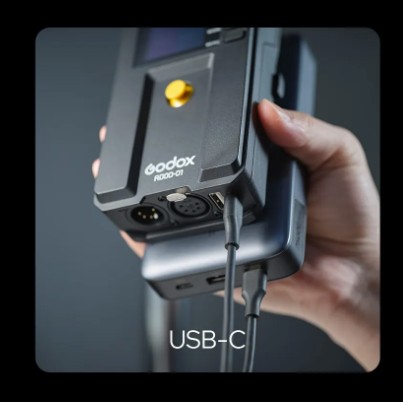

Flexible Power – Powered via USB-C, V-mount batteries, or NPF batteries. Achieve up to 20 hours of continuous use at full load from a single 100Wh battery. Enhancing flexibility on set and expanding creative possibilities.
Patented Frequency Adjustment Technology – The AD33 diffusion Panel features patented frequency adjustment technology, which supports five frequency levels to ensure flicker-free operation tailored to different frame rates. Compatible with frame rates up to 300fps.
Easy Storage – The collapsible frame ensures compact storage and rapid deployment. A removable, Velcro-attached diffusion panel allows convenient storage and quick replacement, featuring IP54-rated protection for reliable all-weather shooting.
Versatile, Reliable Control – Both of the controllers’ support operation via either Controller, the Bluetooth APP, and DMX. In addition Additionally, the AD00-01 controller integrates a built-in CRMX transceiver, ensuring stable, low-latency wireless control. Lead/Follow mode allows one controller to sync them all for smooth, unified adjustments at your fingertips.
What’s In the Box:
• AD33-01 Adjustable Diffusion panel
• AD33-02 Bracket
• AD00-01 Controller
• AC Signal Control Cable
• USB-C Data Cable
• Storage Bag
• D-TAP to USB-C Adapter Cable
• Limited 2-Year Godox SA Warranty
Godox AD33 Specs
Technical Data of the Adjustable Diffusion
Model AD33-01
AC Input 0V-28V~, 5W
Dimension≈ 101 x 105 cm
Net Weight≈ 0.8kg

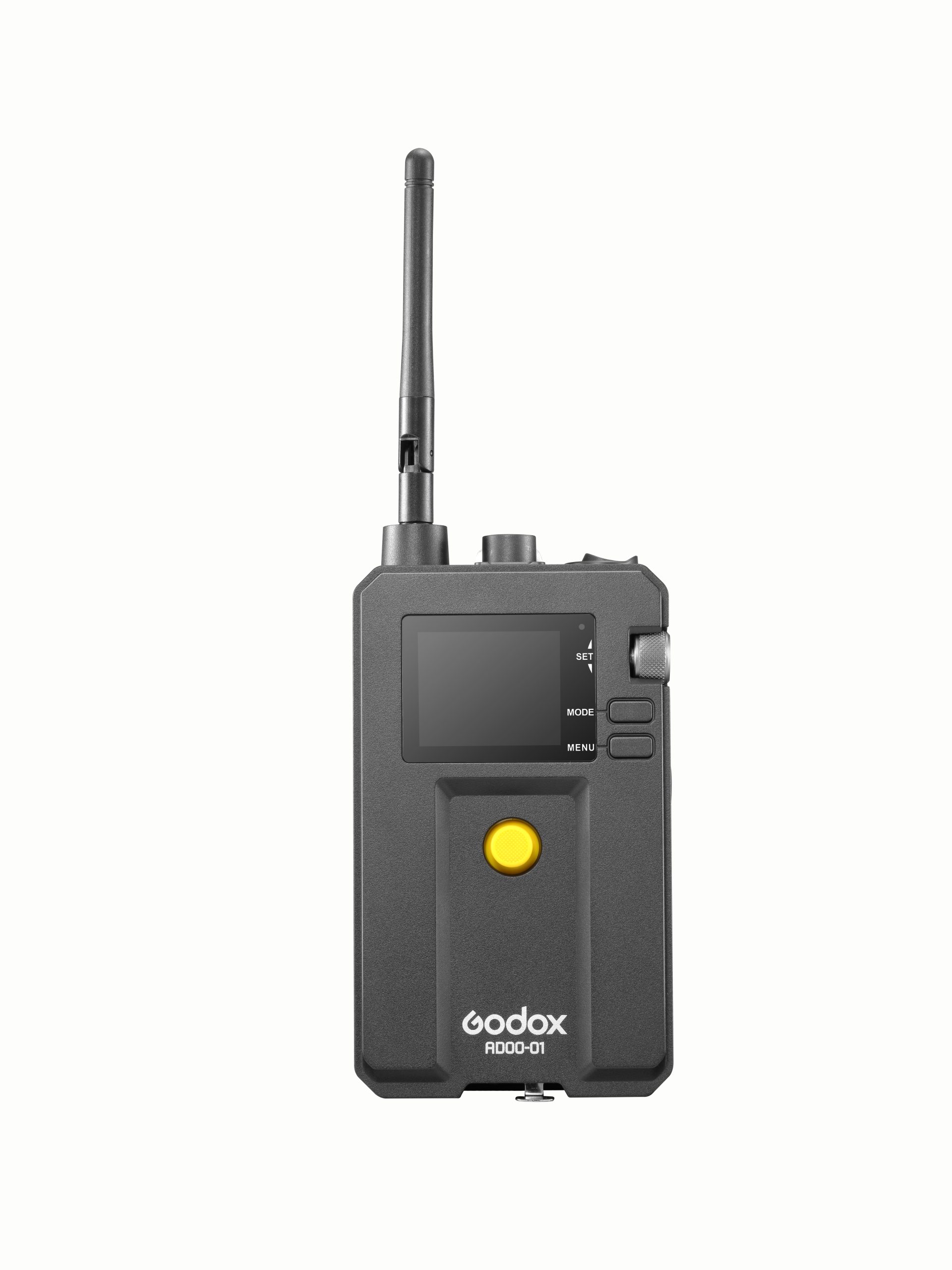

Technical Data of the Controller
Model AD00-01

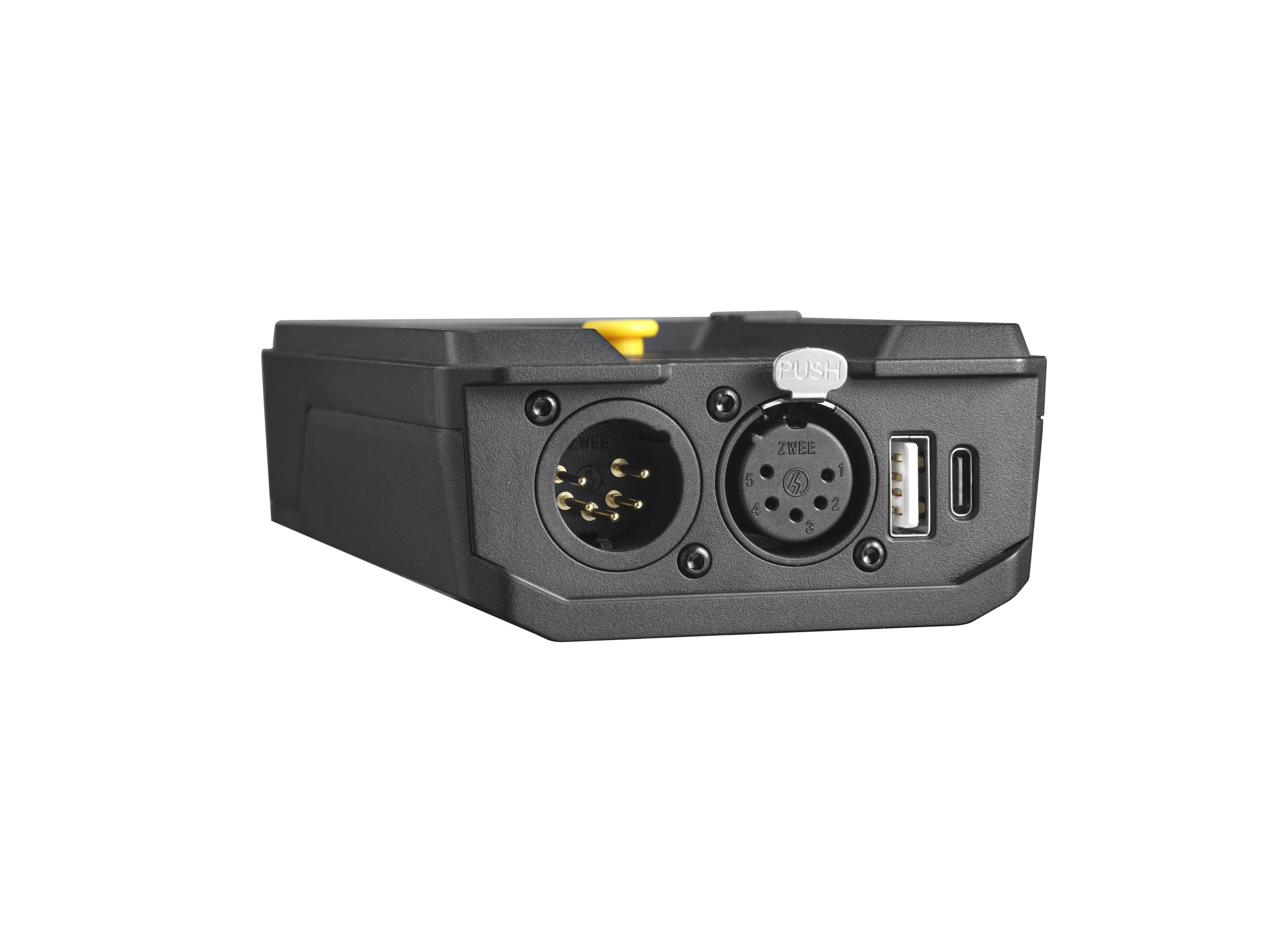

USB-C Port lnput: 12V-20V⎓6.5A
AC Output Port Output: 0V-28V ~
USB-A Port Firmware Upgrade/5V⎓1.5A Power Supply
Controlling Methods DMX/RDM, CRMX, Bluetooth app, controller control
Bluetooth Controlling Distance 30m
Working Environment Temperature -20℃~40℃ –
Dimension≈ 8.3 x 4.6 x 15cm
Net Weight≈ 259g
